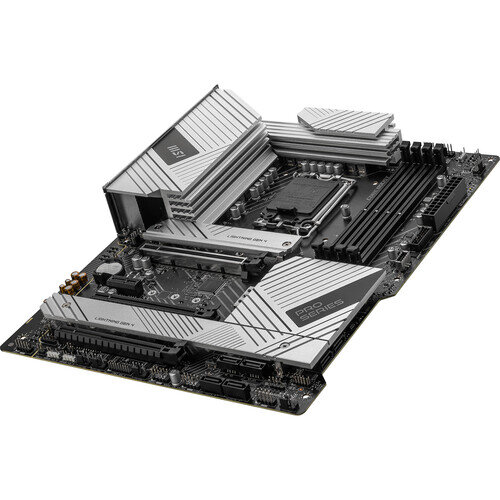

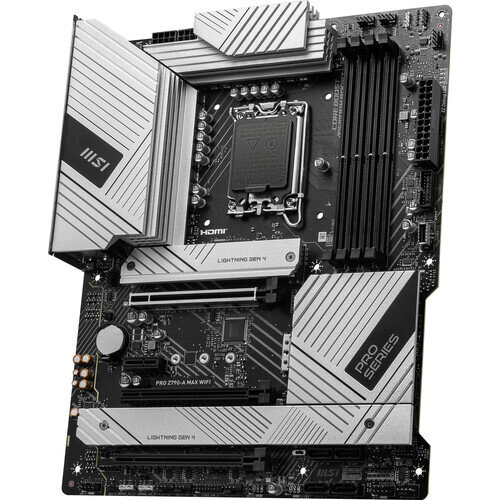

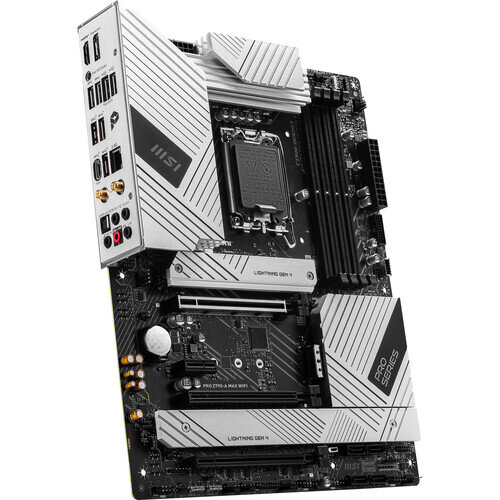

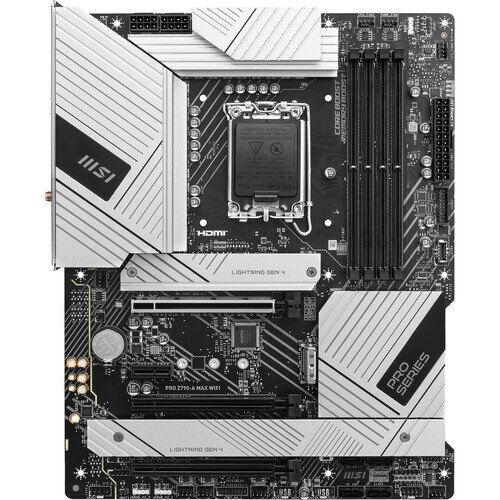

MSI PRO Z790-A MAX WIFI ATX DDR5 Motherboard – White| 911-7E07-018

SKU
911-7E07-018
Brand
MSI
Chipset Intel Z790
CPU Socket LGA 1700
Memory Slots 4 x 288-Pin
Memory Support DDR5 5600, 6400, 6600, 7800 MHz
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots 1 x PCIe 5.0 x16 (x16 mode)
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 3.0 x16 (x1 mode)
1 x PCIe 3.0 x1
Wi-Fi Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
USB 2 x USB-A (USB 2.0)
2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
3 x USB-A (USB 3.1/3.2 Gen 2)
1 x USB-C (USB 3.2 Gen 2×2)
Thunderbolt No
Display 1 x DisplayPort
1 x HDMI
Audio 5 x 1/8″ / 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x 2.5Gigabit
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback
Memory Slots 4 x 288-Pin
Memory Support DDR5 5600, 6400, 6600, 7800 MHz
Maximum Capacity 192 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support No
RAID Support RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
Expansion Slots 1 x PCIe 5.0 x16 (x16 mode)
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 3.0 x16 (x1 mode)
1 x PCIe 3.0 x1
USB 2 x USB 2.0 Header (Supports 4 USB-A Port)
1 x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1 x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling 1 x 4-Pin CPU
6 x 4-Pin System
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
2 x 8-Pin CPU
Security Chassis Intrusion, TPM Module
LED Header 8 x RGB
Diagnostics Clear CMOS
Add-On 1 x USB4 Expansion Card Header
ROM 256 Mb
Front Panel I/O AAFP
Audio Codec Realtek ALC4080 (7.1-Channel)
DAC No
Wi-Fi Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth 5.4
OS Compatibility Windows 10 to 11 (64-Bit Only)
Form Factor ATX
Dimensions 9.6 x 12″ / 24.4 x 30.5 cm
Weight
2.00
