Gigabyte

Intel B660 GAMING Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, 2.5GbE LAN, Rear USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​​
Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​​
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​
Rear SuperSpeed USB 3.2 Gen 1 TYPE-C for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

• With new Intel Hybrid technology, GIGABYTE exclusively creates two new “CPU Upgrade” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

• Support for DDR4 XMP Up to 5333MHz and Beyond
• Hybrid Cores Optimization
• RGB Fusion Multi-Zone Light Show Design
• ULTRA DURABLE
• PCIe 4.0 Design

GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

6+2+1 Phases Hybrid Digital VRM Design
– 6+2+1 Phases Low RDS(on) MOSFETs
– Premium Choke and Capacitors to improve transient response and minimize oscillation
GIGABYTE B760 Motherboards
are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Cooling Features
– High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
– Precision Control
Multiple temperature/fan speed control points for precise fan curve
– Dual Curve Mode
Slope/Stair dual mode for different user scenario
– Fan Stop
Fan can stop completely below users’ specified temperature point

• M-ATX, Sockel 1700
• Intel B760, 4x DDR4 up to 128 GB
• 1x PCIe (x16), 2x PCIe (x1)
• 4x SATA3, 2x M.2, GB-LAN
• 1x USB 3.1 Gen1 Typ C, 5x USB 3.1 Gen1, 6x USB2.0
• HDMI, DVI, 2x DisplayPort 1.4

Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
M.2 Thermal Guard：To Ensure M.2 SSD Performance
EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN
Extended Connectivity：Rear USB-C 10Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

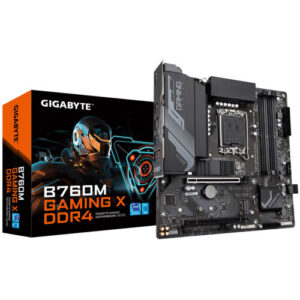

• SKU – B760M-GAMING-X-DDR4
• CPU – LGA1700 socket: Support for the 13th and 12th Generation Intel
• Chipset – Intel B760 Express Chipset
• Memory – Support for DDR4 5333, Dual channel memory architecture
• Onboard Graphics – Integrated Graphics Processor-Intel HD Graphics
• LAN – Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Storage Interface – 2 x M.2 connector, 4 x SATA 6Gb/s connectors
• Form Factor – Micro ATX Form Factor; 24.4cm x 24.4cm
• Weight – 1.260000
• Form Factor – MICRO-ATX

• Supports 11th/10th Gen Intel Core Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 8-Channel HD Audio with High-Quality Audio Capacitors
• NVMe PCIe Gen3 x4 2280 M.2 Connector
• GbE LAN with Bandwidth Management
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple, and Easy Use
• Anti-Sulfur Resistors Design

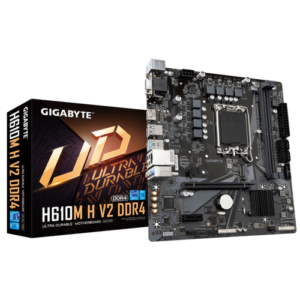

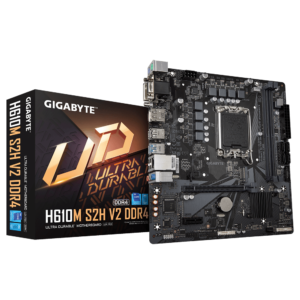

Intel H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Realtek Gaming LAN, HDMI / DVI-D/ D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6
Supports 12th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
GIGABYTE Gaming LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
HDMI / DVI-D / D-Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

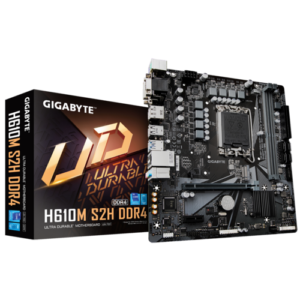

Intel H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, DisplayPort / HDMI / DVI-D/ D-Sub Ports for Multiple Display , Anti-Sulfur Resistor,  Smart Fan 6

• Supports 13th/12th Gen Intel^® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 6+1+1 Hybrid Digital VRM Design
• GbE LAN with Bandwidth Management
• NVMe PCIe 3.0 x4 M.2
• DisplayPort / HDMI / DVI-D / D-Sub Ports for Multiple Display
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design
