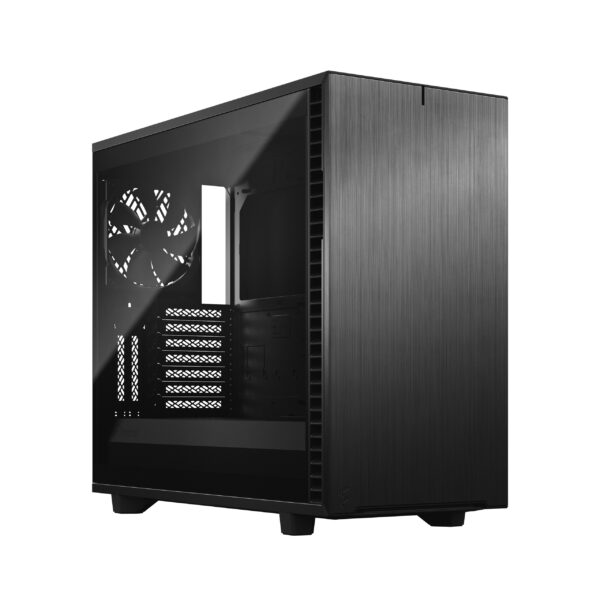

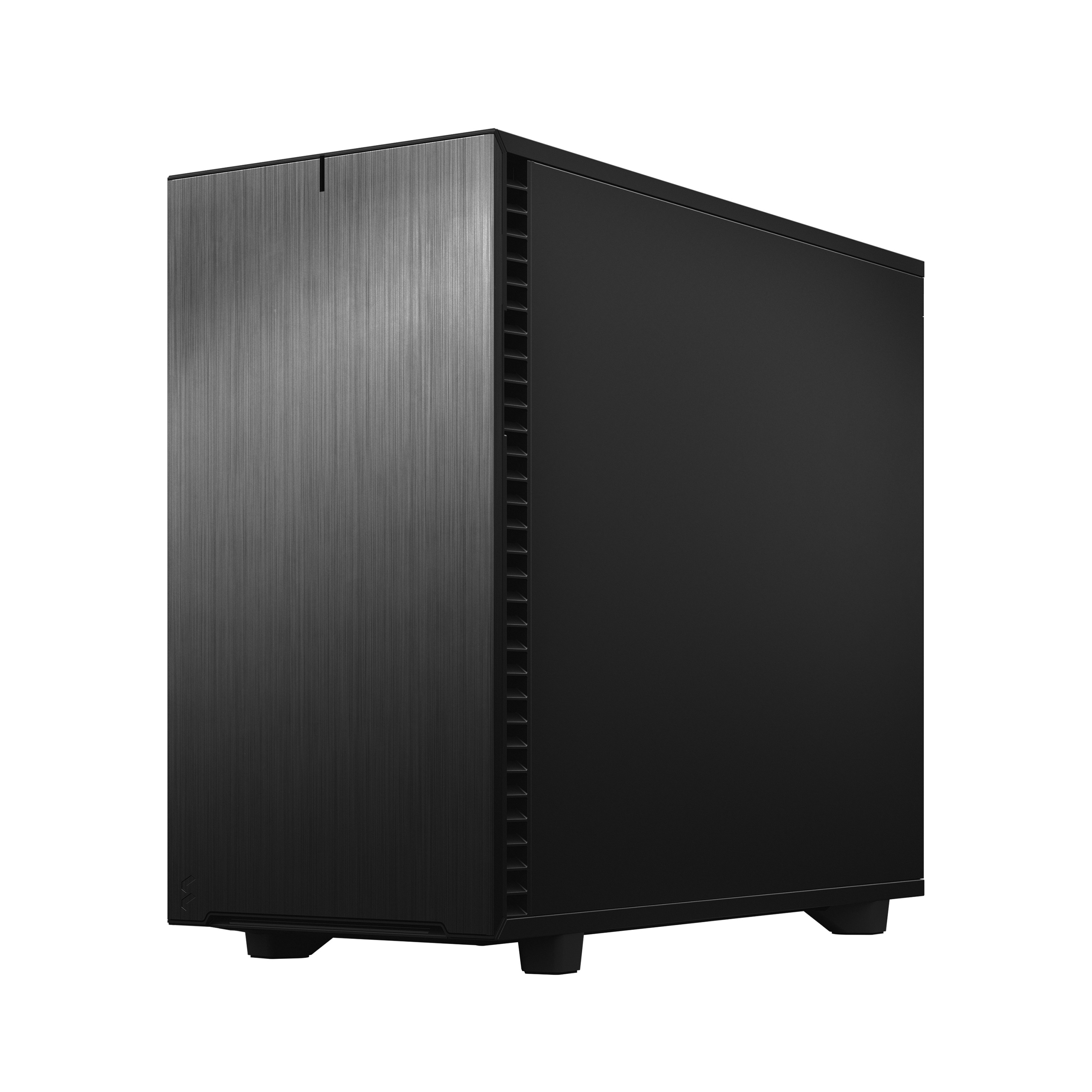

Fractal Design Define 7 Dark Tempered Black Glass Computer Case | FD-C-DEF7A-03

Specifications

• 3.5″/2.5″ Universal drive brackets
  6 included, 14 positions total
• Dedicated 2.5″ drive brackets
  2 trays included, 4 positions total
• 5.25” drive mounts
  1
• Expansion slots
  7 + 2
• Front ports
  1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
• Total fan mounts
  9 x 120/140 mm
• Front fan
  3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
• Top fan
  3 x 120/140 mm
• Rear fan
  1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
• Bottom fan
  2 x 120/140 mm
• Dust filters
  Top, 2 x front, full length bottom
• Fixed velcro straps
  Yes
• Cable routing grommets
  Yes
• Captive thumbscrews
  HDD brackets, SSD brackets, PSU bracket
• Left side panel
  Industrial sound-damped steel or Tempered Glass
• Right side panel
  Industrial sound-damped steel

Compatibility

• Motherboard compatibility
  E-ATX (max 285 mm) / ATX / mATX / mITX
• Power supply type
  ATX
• PSU max length
  250 mm (with HDD cage installed)
• GPU max length
  Storage layout: 290 mm – Open layout: 470 mm (445 mm w/ front fan)
• CPU cooler max height
  185 mm
• Front radiator
  Up to 360/280 mm
• Top radiator
  Up to 360/420 mm
• Rear radiator
  120 mm
• Bottom radiator
  Up to 240/280 mm
• Cable routing space
  30 mm
• Vertical GPU Support (with Flex B-20 or Flex VRC-25)
  65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling

Dimensions

• Case dimensions (LxWxH)
  547 x 240 x 475 mm
• Case dimensions w/o feet/protrusions/screws
  533 x 240 x 451 mm
• Package dimensions (LxWxH)
  558 x 363 x 641 mm
• Net weight
  Solid Version: 13.49 kg, TG Version: 13.45 kg
• Package weight
  Solid Version: 15.98 kg TG Version: 15.94 kg
• Volume
  57.7 liters
