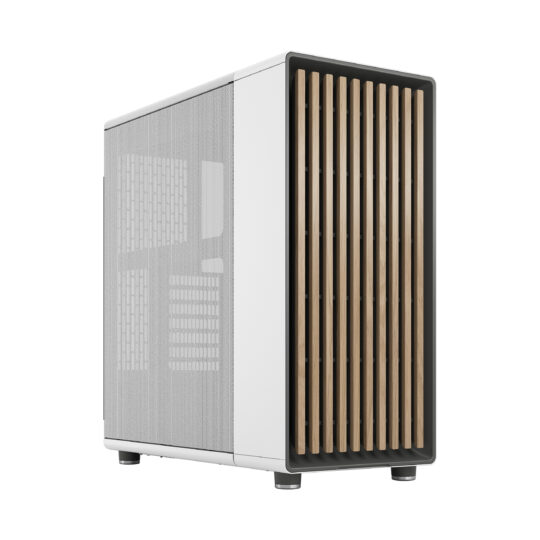

Fractal Design North Chalk White TG Clear | FD-C-NOR1C-04

Specifications

• Dedicated 2.5″ drive mounts
  2
• Combined 3.5/2.5” drive mounts
  2 (included)
• 5.25” drive mounts
  0
• Expansion slots
  7
• Front interface
  1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic
• Total fan mounts
  8 x 120 mm or 6 x 140 mm
• Front fan
  3 x 120, 2 x 140 mm (2 x Aspect 140 mm PWM Included)
• Top Fan
  2 x 120/140 mm
• Rear fan
  1 x 120 mm
• Dust filters
  Front, PSU
• Fixed cable straps
  Yes
• Cable routing grommets
  Yes
• Captive thumbscrews
  HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket
• Left side panel
  Mesh or tempered glass
• Right side panel
  Steel

Compatibility

• Motherboard compatibility
  ATX / mATX / Mini-ITX
• Power supply type
  ATX
• PSU max length
  1 HDD Tray: 255 mm max, 2 HDD Tray: 155 mm max
• GPU max length
  355 mm with and without front fan mounted
• CPU cooler max height
  145 mm with Fan Bracket (Mesh version only)/ 170 mm w.o
• Front radiator
  Up to 360 mm
• Top radiator
  Up to 240 mm (See manual for details on ram clearance)
• Rear radiator
  1 x 120 mm (If using a rear radiator the mesh version fan bracket can only be slotted into the bottom position)
• Cable routing space
  30 mm

Dimensions

• Case dimensions (LxWxH)
  447 x 215 x 469 mm
• Case dimensions w/o feet/protrusions/screws
  433,5 x 215 x 450 mm
• Net weight
  7.6 kg (Mesh) / 7.7kg (TG)
• Package dimensions (LxWxH)
  565 x 326 x 553 mm
• Gross weight
  9.55 kg (Mesh) / 9.3kg (TG)
