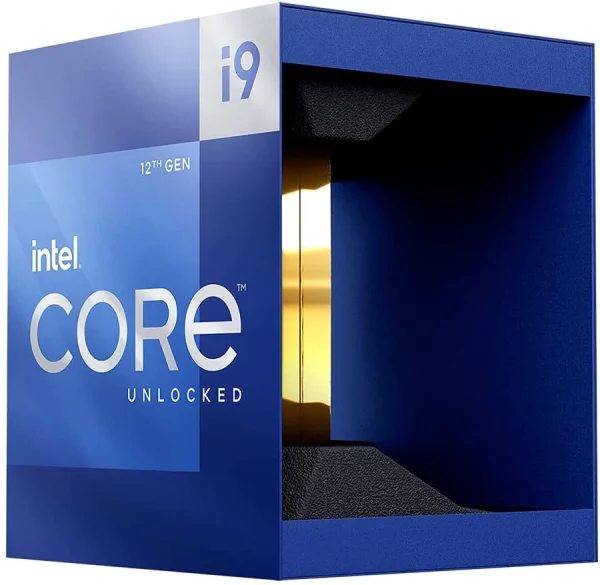

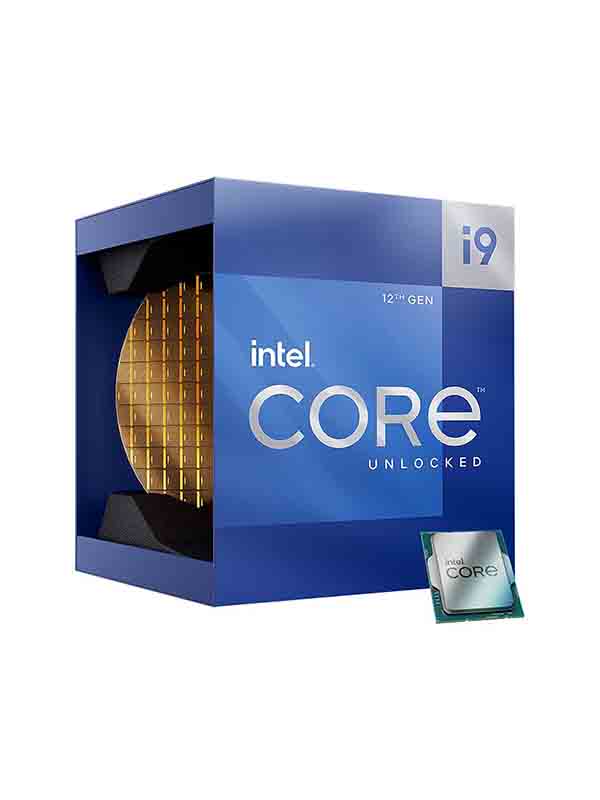

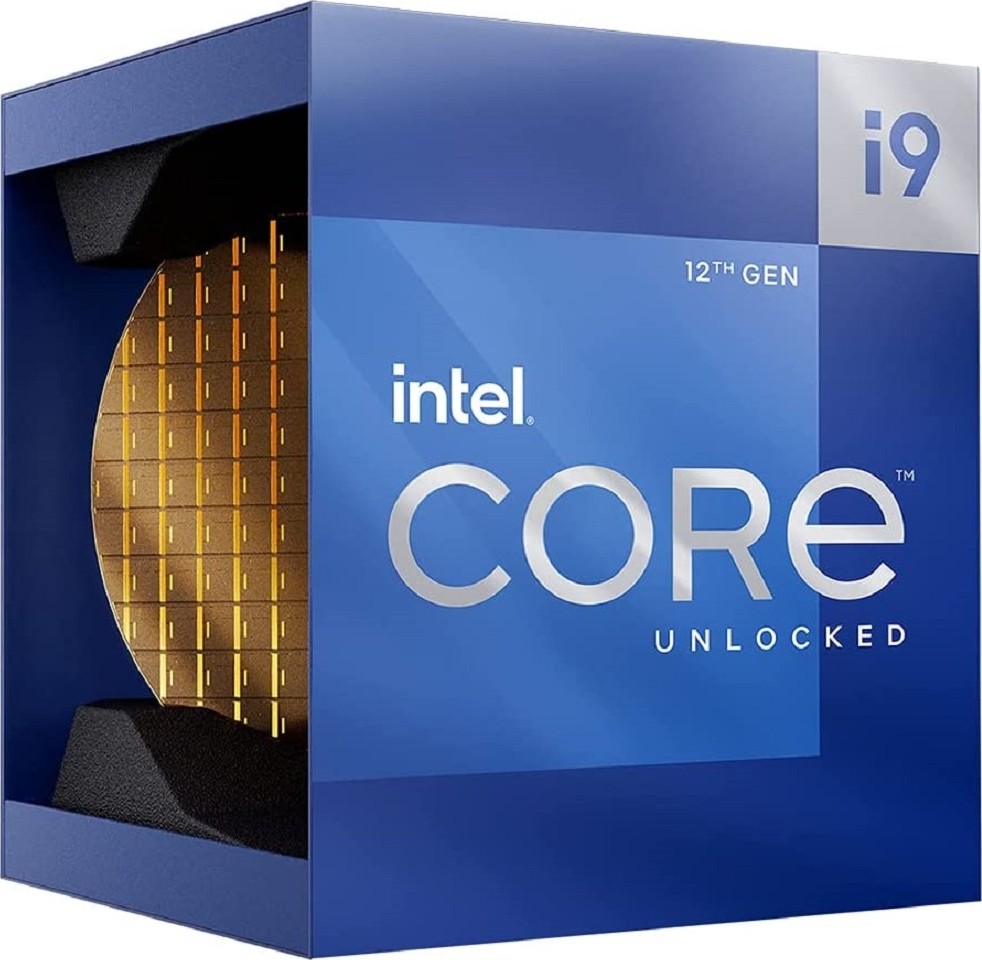

Intel Core i9-12900K Desktop Processor, 16 (8P+8E) Cores, up to 5.2 GHz, Unlocked LGA1700, 600 Series Chipset, 125W | BX8071512900K

Essentials
Product Collection12th Generation Intel® Core™ i9 Processors
Code NameProducts formerly Alder Lake
Vertical SegmentDesktop
Processor Numberi9-12900K
StatusLaunched
Launch DateQ4’21
LithographyIntel 7
Use ConditionsPC/Client/Tablet, Workstation
CPU Specifications
Total Cores16
# of Performance-cores8
# of Efficient-cores8
Total Threads24
Max Turbo Frequency5.20 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡5.20 GHz
Performance-core Max Turbo Frequency5.10 GHz
Efficient-core Max Turbo Frequency3.90 GHz
Performance-core Base Frequency3.20 GHz
Efficient-core Base Frequency2.40 GHz
Cache30 MB Intel® Smart Cache
Total L2 Cache14 MB
Processor Base Power125 W
Maximum Turbo Power241 W
Memory Specifications
Max Memory Size (dependent on memory type)128 GB
Memory TypesUp to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels2
Max Memory Bandwidth76.8 GB/s
ECC Memory Supported ‡Yes
Processor Graphics
Processor Graphics ‡Intel® UHD Graphics 770
Graphics Base Frequency300 MHz
Graphics Max Dynamic Frequency1.55 GHz
Graphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units32
Max Resolution (HDMI)‡4096 x 2160 @ 60Hz
Max Resolution (DP)‡7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡5120 x 3200 @ 120Hz
DirectX* Support12
OpenGL* Support4.5
Multi-Format Codec Engines2
Intel® Quick Sync VideoYes
Intel® Clear Video HD TechnologyYes
# of Displays Supported ‡4
Device ID0x4680
OpenCL* Support2.1
Expansion Options
Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision5.0 and 4.0
PCI Express Configurations ‡Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes20
Package Specifications
Sockets SupportedFCLGA1700
Max CPU Configuration1
Thermal Solution SpecificationPCG 2020A
TJUNCTION100°C
Package Size45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator3.0
Intel® Thread DirectorYes
Intel® Deep Learning Boost (Intel® DL Boost)Yes
Intel® Optane™ Memory Supported ‡Yes
Intel® Speed Shift TechnologyYes
Intel® Turbo Boost Max Technology 3.0 ‡Yes
Intel® Turbo Boost Technology ‡2.0
Intel® Hyper-Threading Technology ‡Yes
Intel® 64 ‡Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle StatesYes
Enhanced Intel SpeedStep® TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® Volume Management Device (VMD)Yes
Security & Reliability
Intel vPro® Platform Eligibility ‡Yes
Intel vPro® Enterprise Platform Eligibility ‡Yes
Intel® Threat Detection Technology (TDT)Yes
Intel® Active Management Technology (AMT) ‡Yes
Intel® Standard Manageability (ISM) ‡Yes
Intel® One-Click Recovery ‡Yes
Intel® Hardware Shield Eligibility ‡Yes
Intel® AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Intel® Trusted Execution Technology ‡Yes
Execute Disable Bit ‡Yes
Intel® Boot GuardYes
Mode-based Execute Control (MBEC)Yes
Intel® Control-Flow Enforcement TechnologyYes
Intel® Total Memory Encryption – Multi KeyYes
Intel® Total Memory EncryptionYes
Intel® Stable IT Platform Program (SIPP)Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡Yes
Intel® Virtualization Technology (VT-x) ‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® VT-x with Extended Page Tables (EPT) ‡Yes
