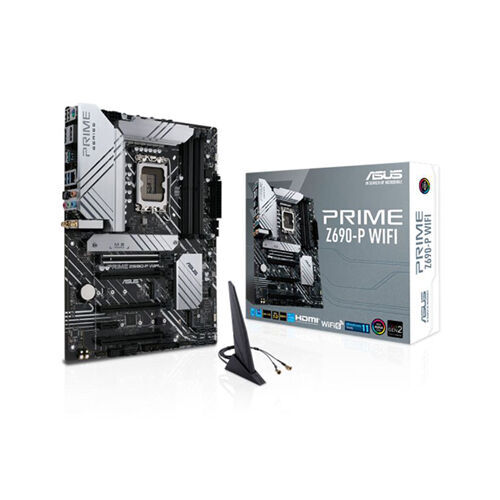

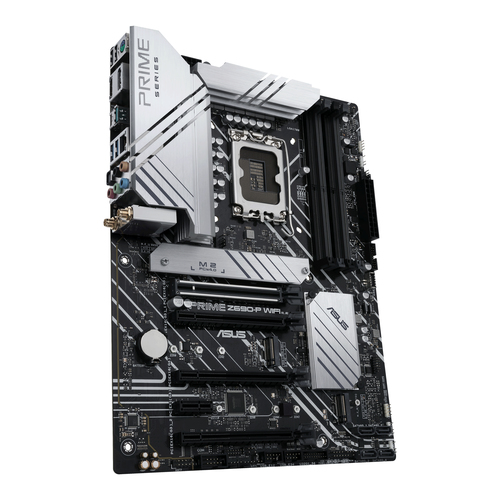

Asus Prime Z690-P WIFI DDR5 Intel LGA 1700 12th Gen Motherboard | 90MB1A90-M0EAY0

Name: Asus Prime Z690-P WIFI DDR5 Intel LGA 1700 12th Gen Motherboard | 90MB1A90-M0EAY0
SKU: 90MB1A90-M0EAY0
Price: 1149.00 AED
Availability: OutOfStock

Availability:

Out of stock

Add to wishlist

Compare

CPU: Intel Socket LGA1700 for 12th Gen Intel
Chipset: Intel Z690 Chipset
Memory: 4 x DIMM, Max. 128GB, DDR5
Wireless & Bluetooth: 2×2 Wi-Fi 6, Bluetooth v5.2

1,149.00 AED ~~1,199.00 AED~~

Out of stock

Specification
Reviews

CPU	Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset	Z690
Memory	4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Graphics
	1 x DisplayPort
	1 x HDMI
	Support max. 4K@60Hz as specified in DisplayPort 1.4.
	Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel^® 12^th Gen Processors*
	1 x PCIe 5.0/4.0/3.0 x16 slot
	Intel^® Z690 Chipset**
	1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
	2 x PCIe 3.0 x16 slots (support x4 mode)
	1 x PCIe 3.0 x1 slot
	Supports Intel^® Optane Memory H Series on PCH-attached PCIe slot
Storage	Intel^® 12^th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280/22110
	– Intel^®12^th Gen processors support PCIe 4.0 x4 mode.
	Intel^®Z690 Chipset**
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
	Intel^® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
	Intel^® Rapid Storage Technology supports Intel^® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
	1 x Realtek 2.5Gb Ethernet
	1 x Realtek 2.5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth
	2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5GHz frequency band
	Bluetooth v5.2
USB
	Rear USB (Total 6 ports)
	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)

	Front USB (Total 9 ports)
	1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports*
	* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
	ALC887/897
	Realtek 7.1 Surround Sound High Definition Audio CODEC
	– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– Supports up to 24-Bit/192 kHz playback
Audio Features
	– Audio Shielding
	– Rear optical S/PDIF out port
	– Premium audio capacitors
	– Dedicated audio PCB layers
Back Panel I/O Ports
	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI^® port
	1 x Wi-Fi Module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
	1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	2 x AURA RGB headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x SPI TPM header (14-1pin)
	1 x 20-5pin System Panel header
	1 x Thunderbolt™ header
